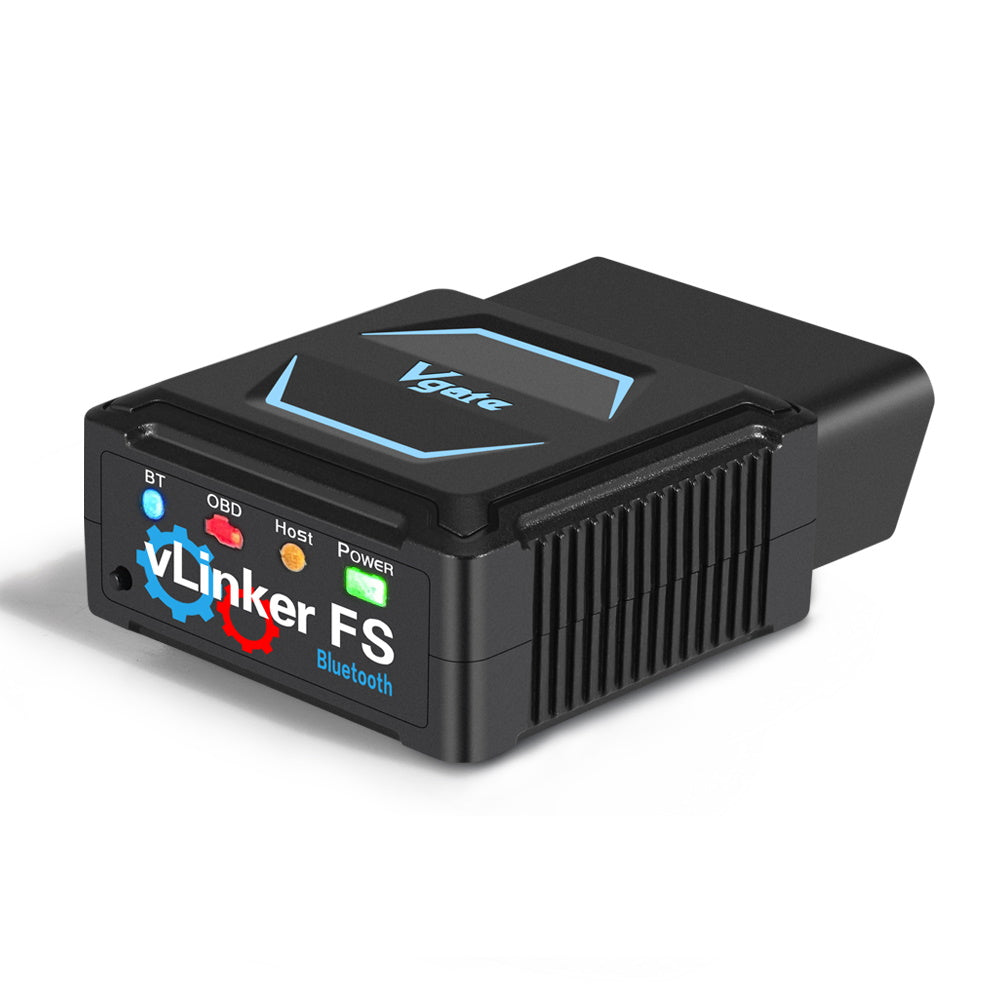

vLinker FS - ODB Bluetooth Adapter

vLinker FS - ODB Bluetooth Adapter

$59.00 USD
$59.00 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock
View full details

Coming Soon

Fully certified for use in DMD for all OBD features!

  • Automatic sleep & wake-up

  • Support for firmware updates

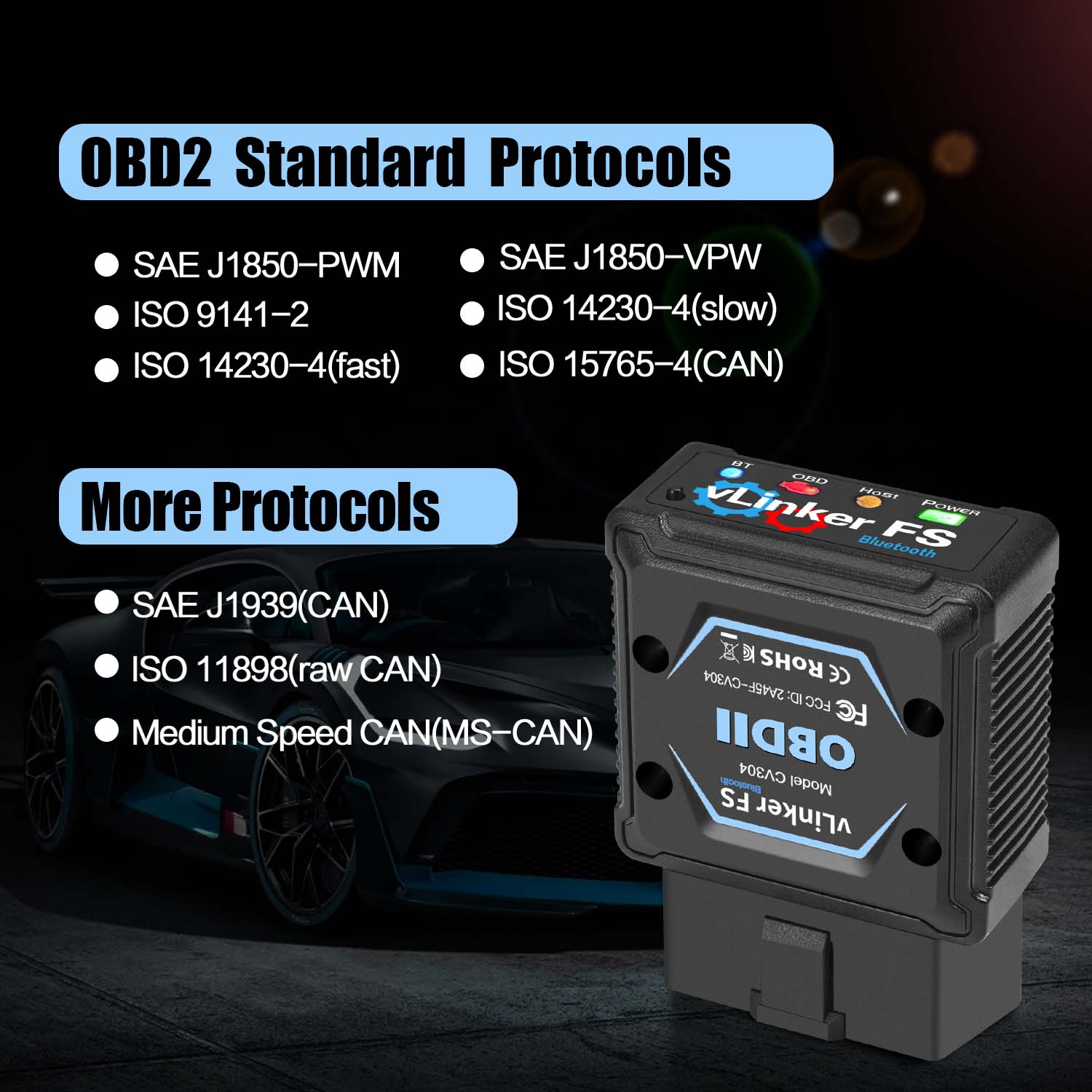

  • Supports HS-CAN / MS-CAN protocols

  • OBD request bytes up to 4K bytes

  • Supports 18V FEPS Voltage output

  • Work in 12V or 24V automotive systems

  • Battery Saver technology - low power mode

  • World’s fastest Bluetooth OBD-II adapter (baud-rate: 3Mbps)

  • Superior compatibility - works with more 3rd party apps software than any other adapter

When used with DMD software, check the compatibility list provided on their support page.

Don’t forget your Adapter Cable!


NOTE: If you run an aftermarket ECU, especially those on a KTM 500, Husqvarna 501 the ODB2 Adapters will not provide you with any data, as most aftermarket ECUs do not provide any CAN-BUS data. Please double check with your manufacturer first.

Secondly, the ODB2 Scan tools will only provide data on what the ECU tracks itself. For example: if you bike doesn't have an active temperature sensor, adding an ODB2 reader will not suddenly add that capability, the bike needs to have a native sensor for the ECU to read first. In this example, a fan sensor is not the same as an ECU temperature sensor.

BMW Owners: The 1250GS and 1300GS use a proprietary diagnostic protocol, and do NOT adhere to the standard CAN-BUS PIDs. Because of this not all data is available from this ODB Scan M1 device on these models.



Customer Reviews

Based on 7 reviews
100%
(7)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
T
Trevor
Perfect for my 690

I picked up one of these OBDII devices to send data to my DMDT865X on my KTM 690 (2019). It works perfectly. I see RPM, voltage, coolant temp, etc. It's nice to keep an eye on things that the idiot lights on the dash don't show me.

M
Michael Z.
2017 Husqvarna 701E

Working great paired to a Pixel 6. I also use the KTM 6-pin to OBD2 adapter.

Very sporadic issue connecting, but I tend to believe this is a phone issue, not the OBD adapter; this however is rare. Otherwise it connects fast and remains stable.

P
Paul S
CRF300L

Installed on a CRF300L with DMD2 on a Galaxy Tablet. So far so good. I've used it a dozen times on various rides. It connects automatically and has given no issues yet.

I did have to purchase a different adapter cable than recommended on this site. US Spec 2021 CRF300L uses a Euro 5 connector, not a Honda 4 pin.

A
Andres
Good product

The product is good and does what is supposed to do. Unfortunately, the description on the website failed to inform that if you going to use it on a 2024 T7 you will have to remove the Yamaha connect device in order to install the obd device. Therefore loosing the capability of the app.
So I ended up keeping the app and put away the obd for when I travel to sync with the dmd2 gps.
Hopefully in the future a splitter will be available so both features can be connected at the same time

A
Austin Simpkins
Works well

Easy to setup and fast connection with my T865 tablet. Works well!
