If you want to connect an OBD dongle to your motorcycle, you will need one of these.
This cable with covert your motorcycle diagnostics connector to a standard OBD2 (16 pin) connector.

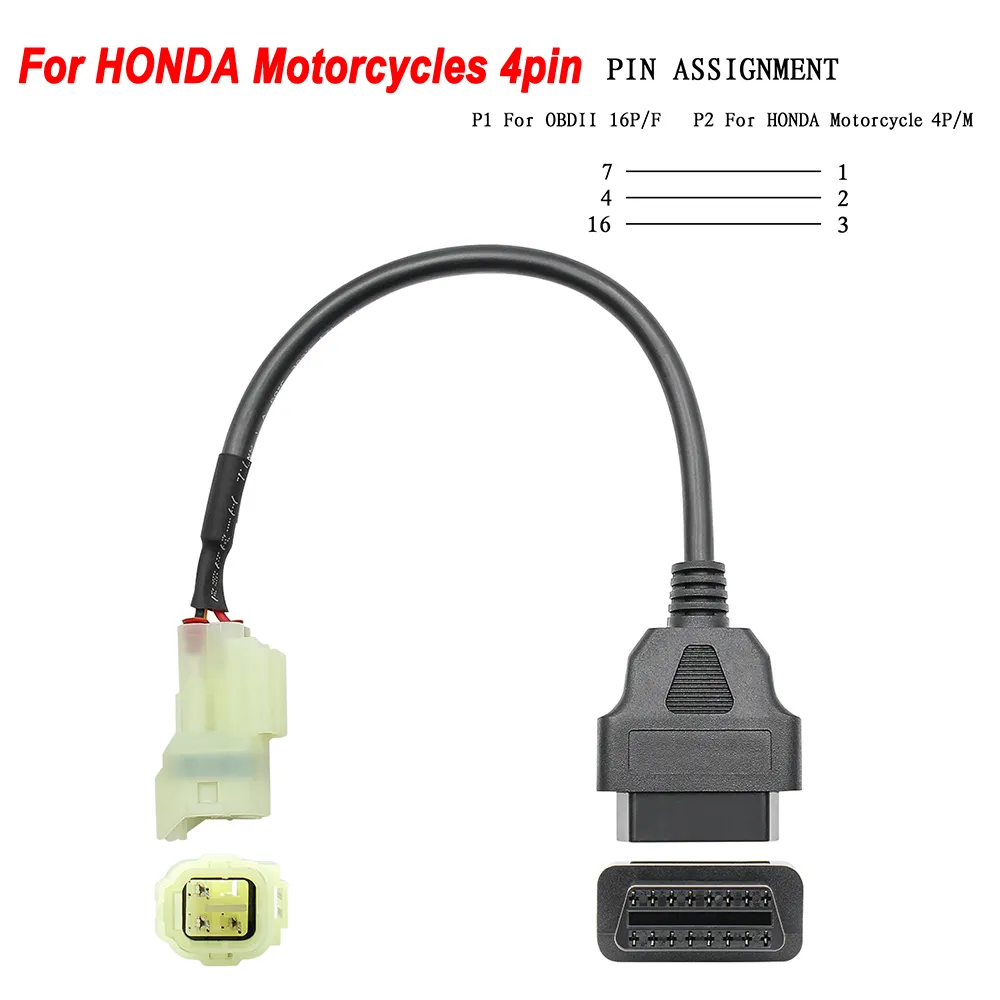

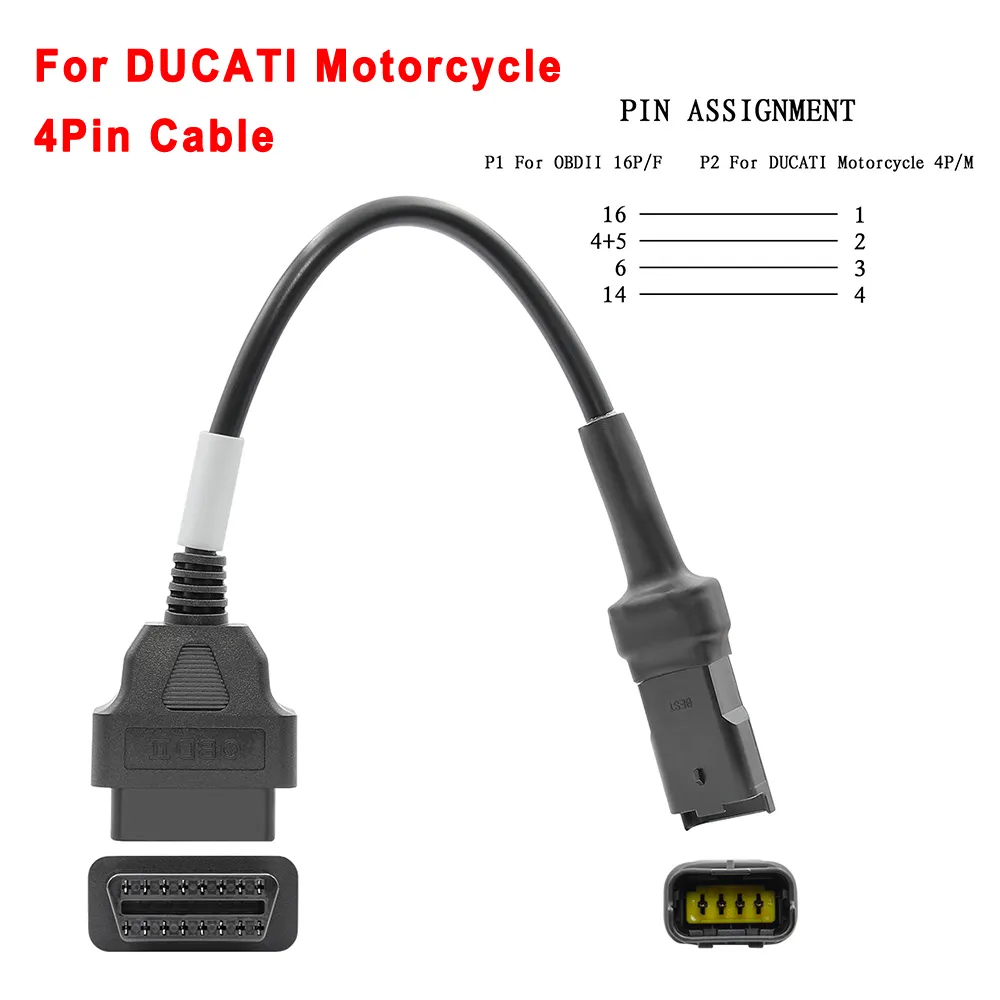

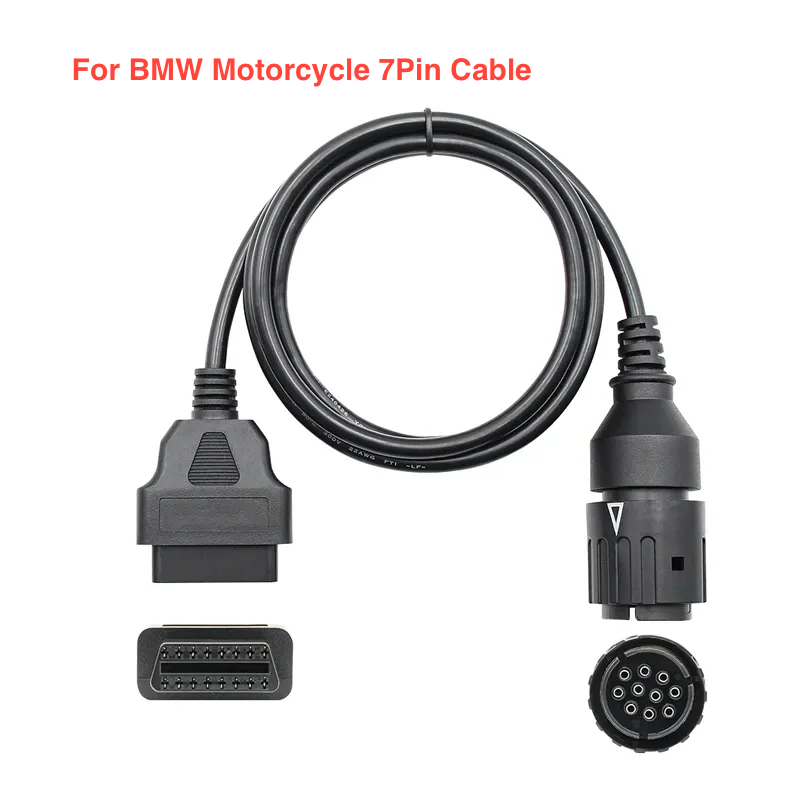

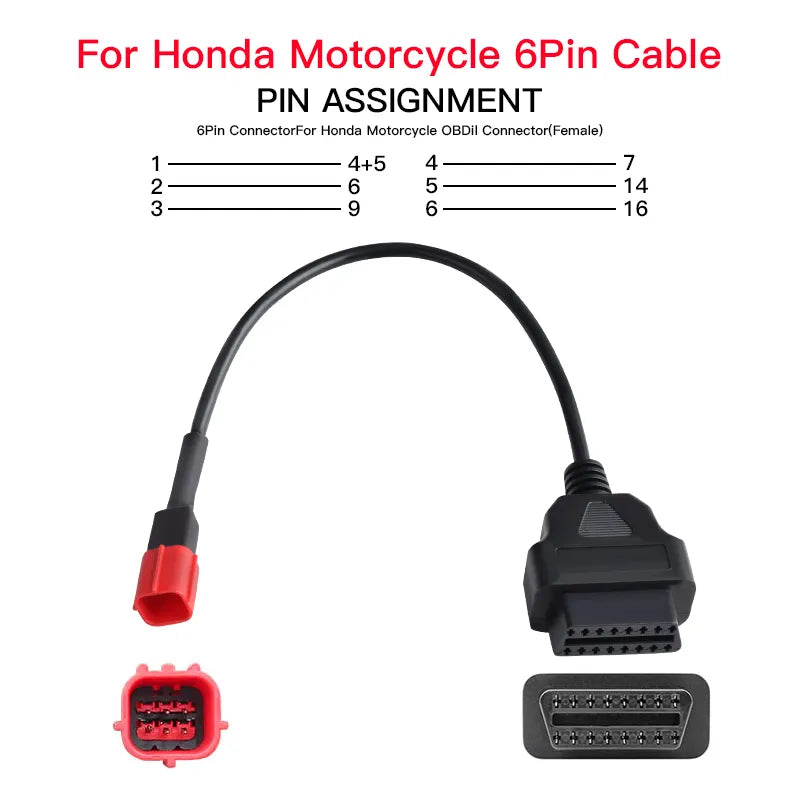

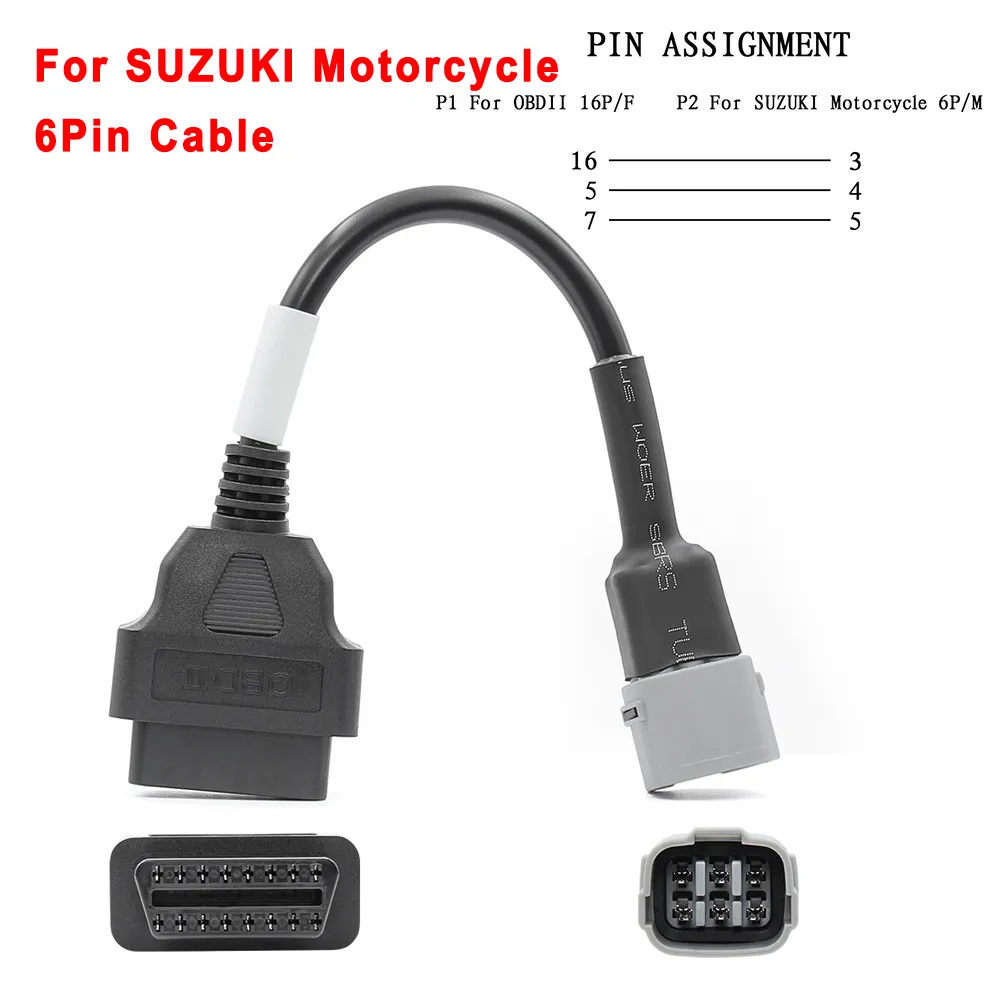

Select the correct version for your motorcycle.
|

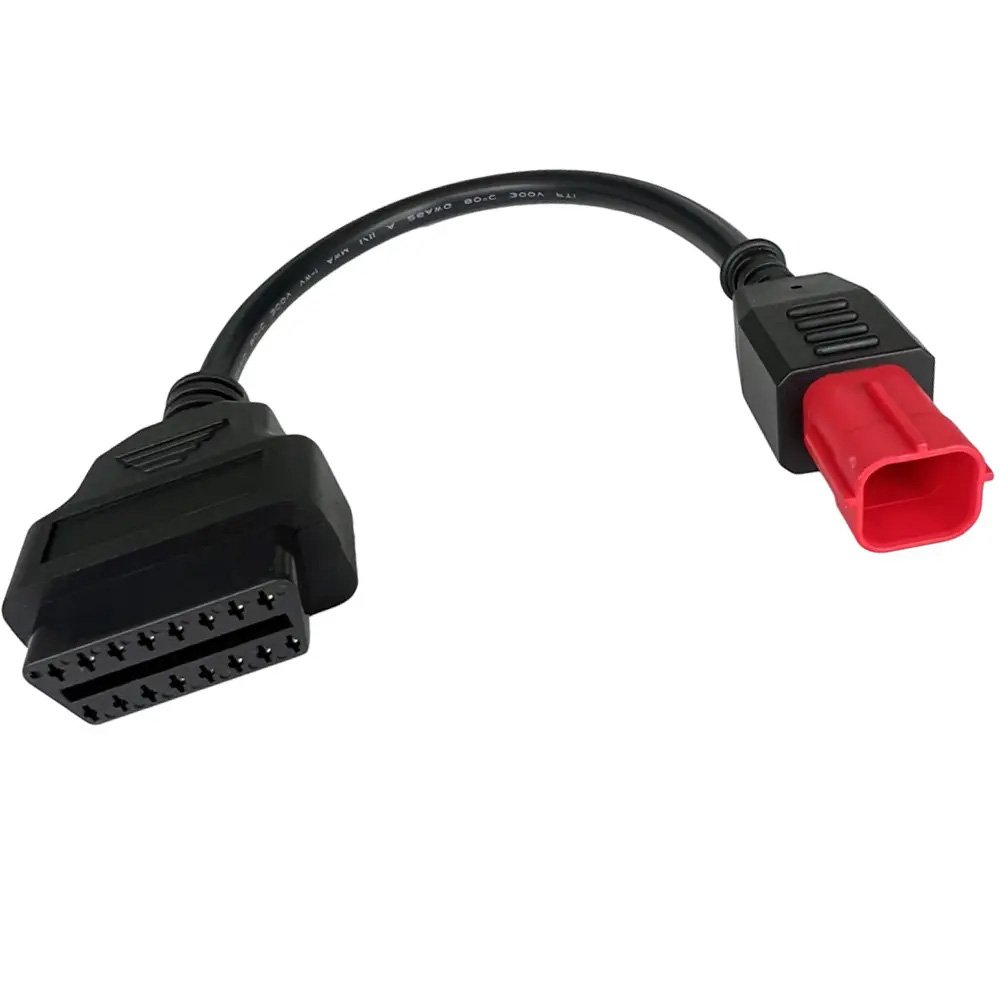

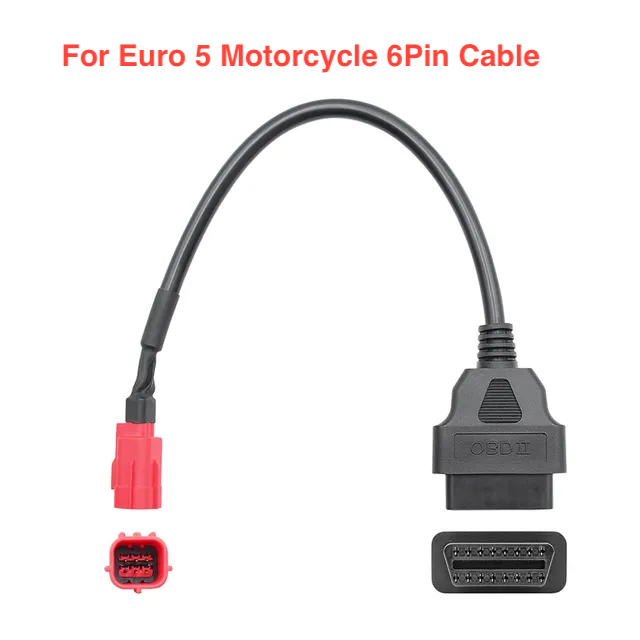

Before you order: look at the OBD/Diagnostic connection on your motorcycle to see whether this adapter really fits it. With very current models it is possible that the new EURO5 connection is already installed. You can see what it looks like in the picture: If the connection looks like the picture on the right, then please order EURO 5 - 6 PIN regardless of your manufacturer. |
|
|

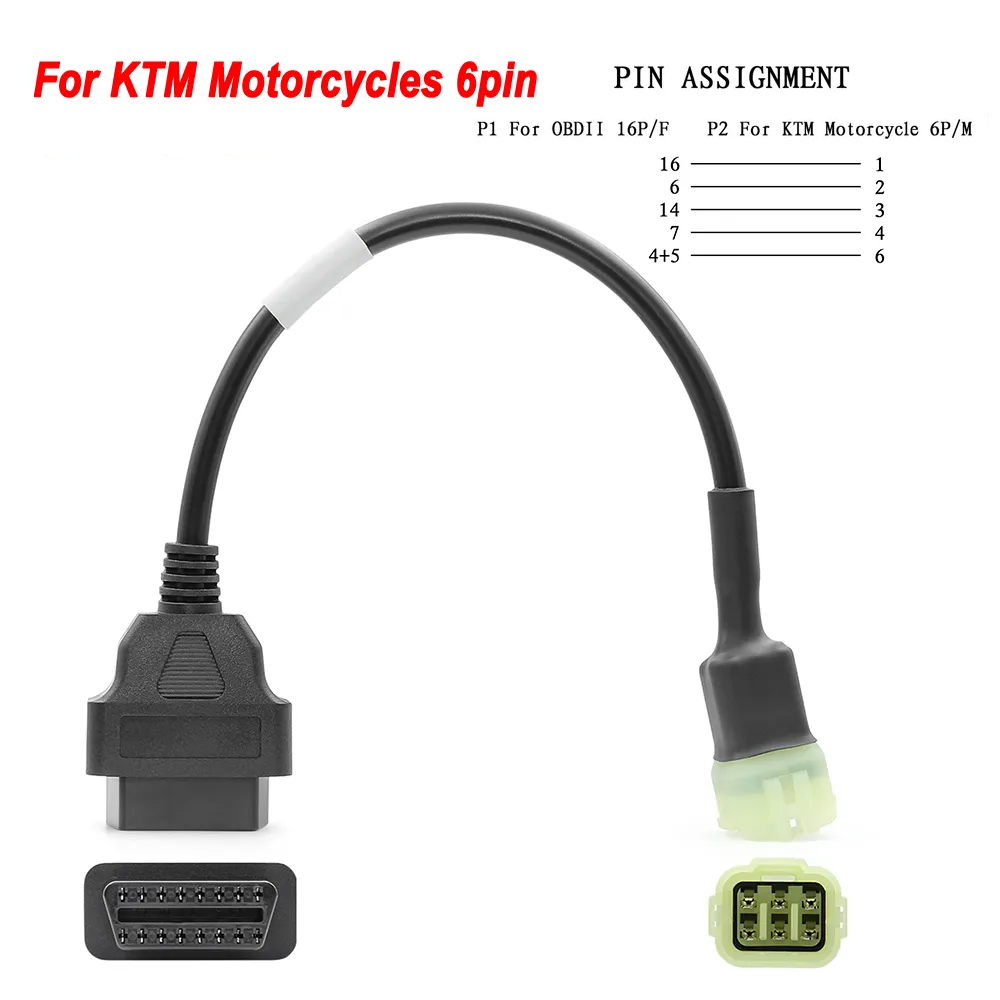

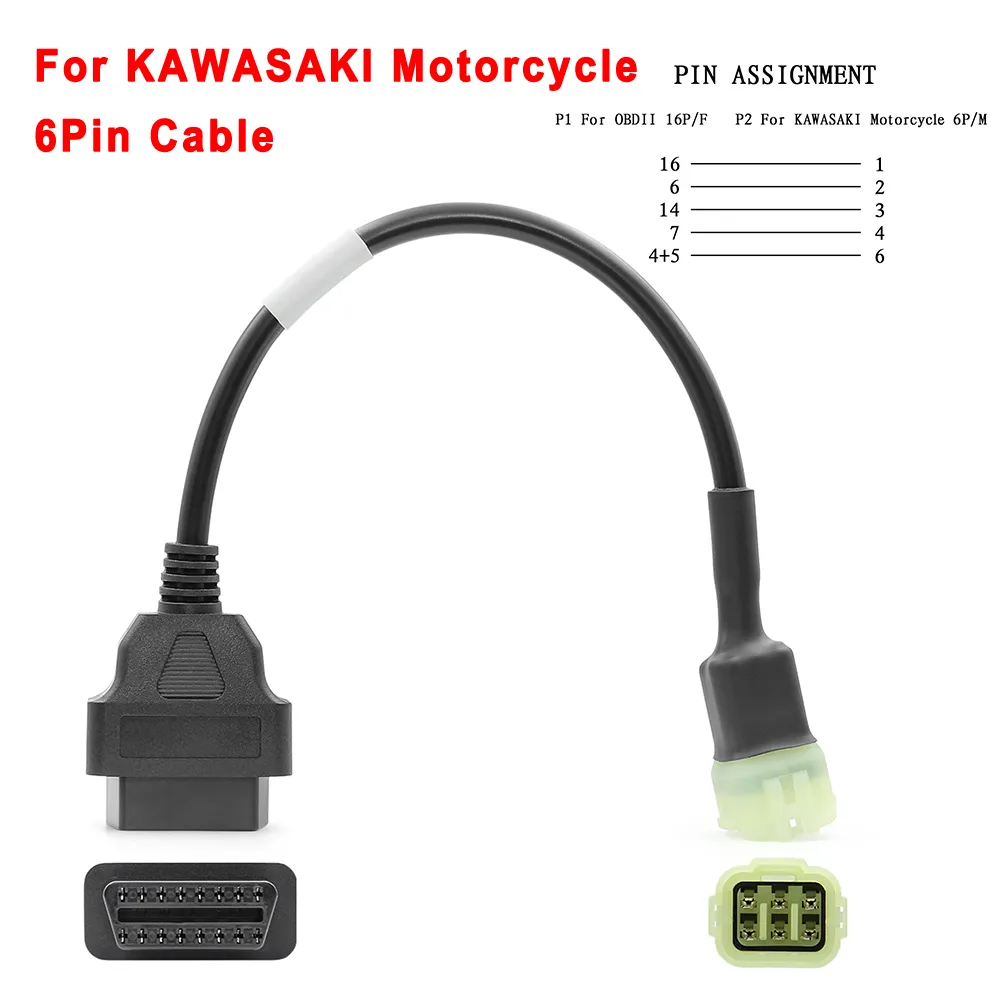

| KTM & Kawasaki: KTM & Kawasaki share the same 6-pin connector, but the wiring pin-out to the ODB 16-pin are different! Do not intermix the cables! |  |
|
|
KTM K-Line + CAN:There are a lot of KTM adapters out that only provide 3 wired connections. This is for K-Line only diagnostics, often used on the off-road enduro/motocross bikes. This adapter lacks the CAN-High/CAN-Low connections and CAN NOT be used with an ODB2 connection. The adapter cable we sell has K-Line + CAN connections wired and is suitable for use with ODB2 devices for CAN communication. |
 |
|
|

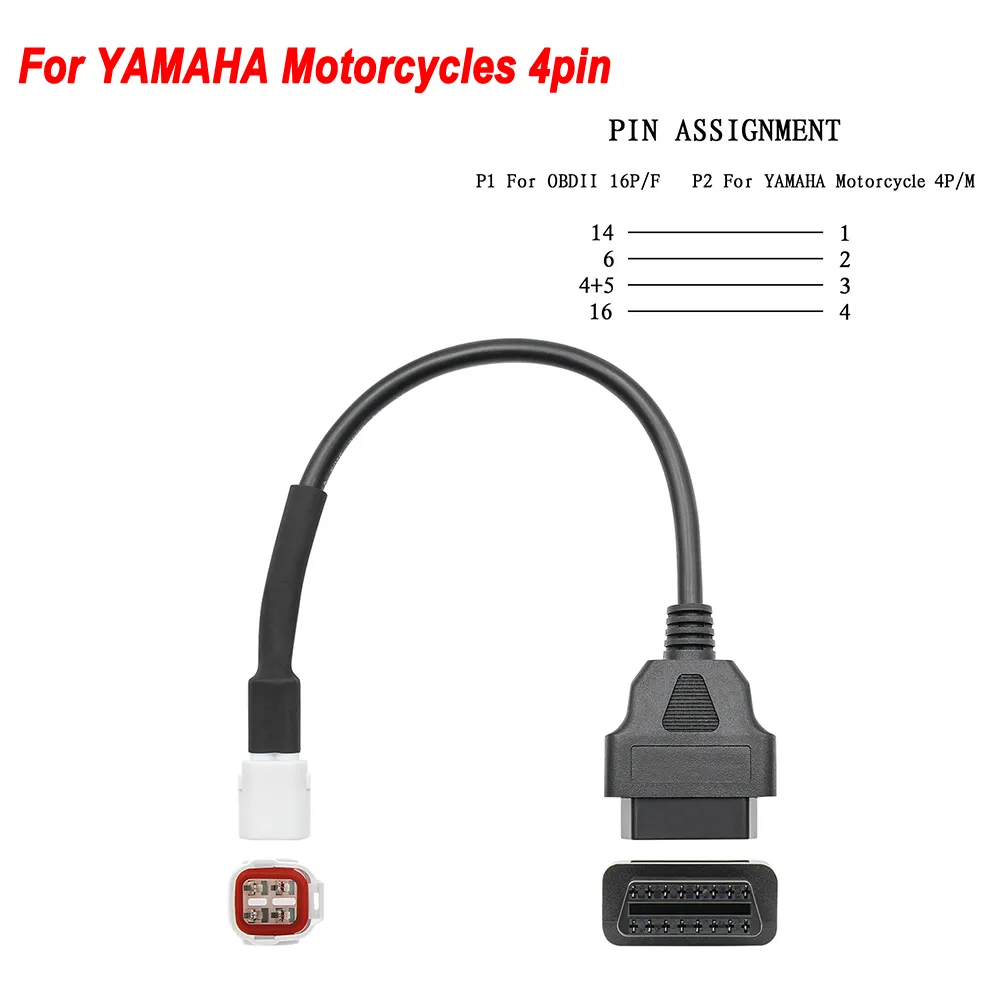

Yamaha T7: Model Year 2021 and prior use the Yamaha 4-Pin Adapter. 2022+ bikes, regardless of where it was purchased use the Euro5 (RED) adapter. |
